E320A
E320A
RISC-V 32-bit Architecture IPs

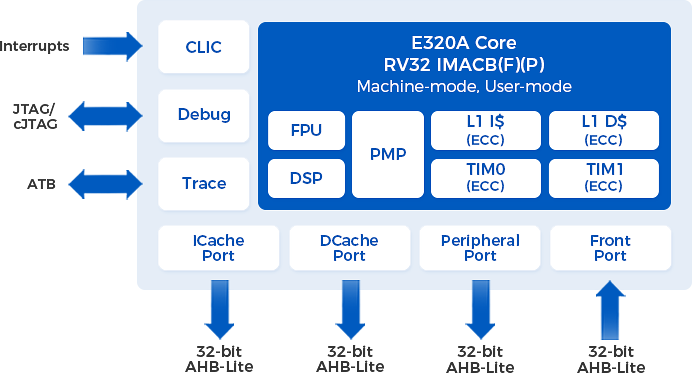

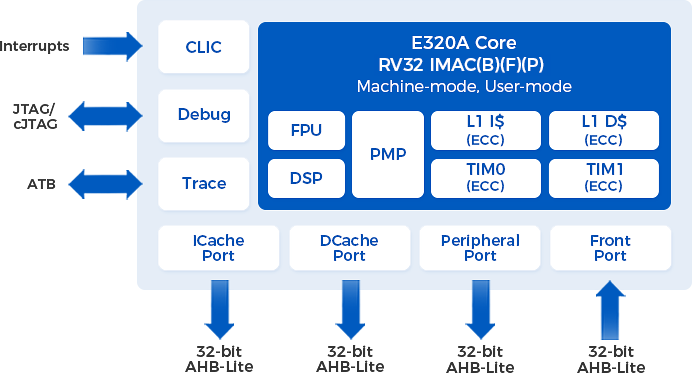

E320A:
ESWIN Computing E320A 32-bit functional-safety processor is a 32-bit RISC-V automotive grade CPU IP product with low power consumption and high-performance.
Based on E320, functional safety mechanism, such as Parity/ECC, SPM (Stack Pointer Monitor) to meet ASIL-B functional safety standards.
Based on E320, functional safety mechanism, such as Parity/ECC, SPM (Stack Pointer Monitor) to meet ASIL-B functional safety standards.
Features
| Features | Description | ||||
| ISA | RISC-V 32-bit IMAC(B)(F)(P)_Zicsr_Zifencei_Zicbom | ||||
| Modes | Machine-mode, User-mode | ||||
| Security | Supporting Smepmp, PMP Region can optional from 0 to 16 | ||||
| Pipeline | 3-stage pipeline | ||||
| TIM | TIM0 and TIM1,with configurable sizes from 0KB to 128MB, ECC optional | ||||
| L1 I$ | Size configurable from 4KB to 128KB. Parity/ECC optional | ||||
| L1 D$ | Size configurable from 4KB to 128KB. Parity/ECC optional | ||||
| Interrupt | CLIC interrupt controller, supports 496 interrupt requests and non-maskable interrupt(NMI) | ||||
| Debug | Debug module: supports JTAG/cJTAG Trace module: supports RISC-V N-Trace |
||||
| Bus Interface | 1. 1.ICache Port: 32-bit AHB-Lite master interface 2. 2.Dcache Port: 32-bit AHB-Lite master interface 3. 3.Peripheral Port: 32-bit AHB-Lite master interface 4. Front Port: 32-bit AHB-Lite slave interface |
||||
| CoreMark（CoreMarks/MHz） | 4.45 | ||||
| Dhrystone-Legla（DMIPS/MHz） | 1.74 | ||||
